1099LHS Bypass Style Humidifier

Search Results for

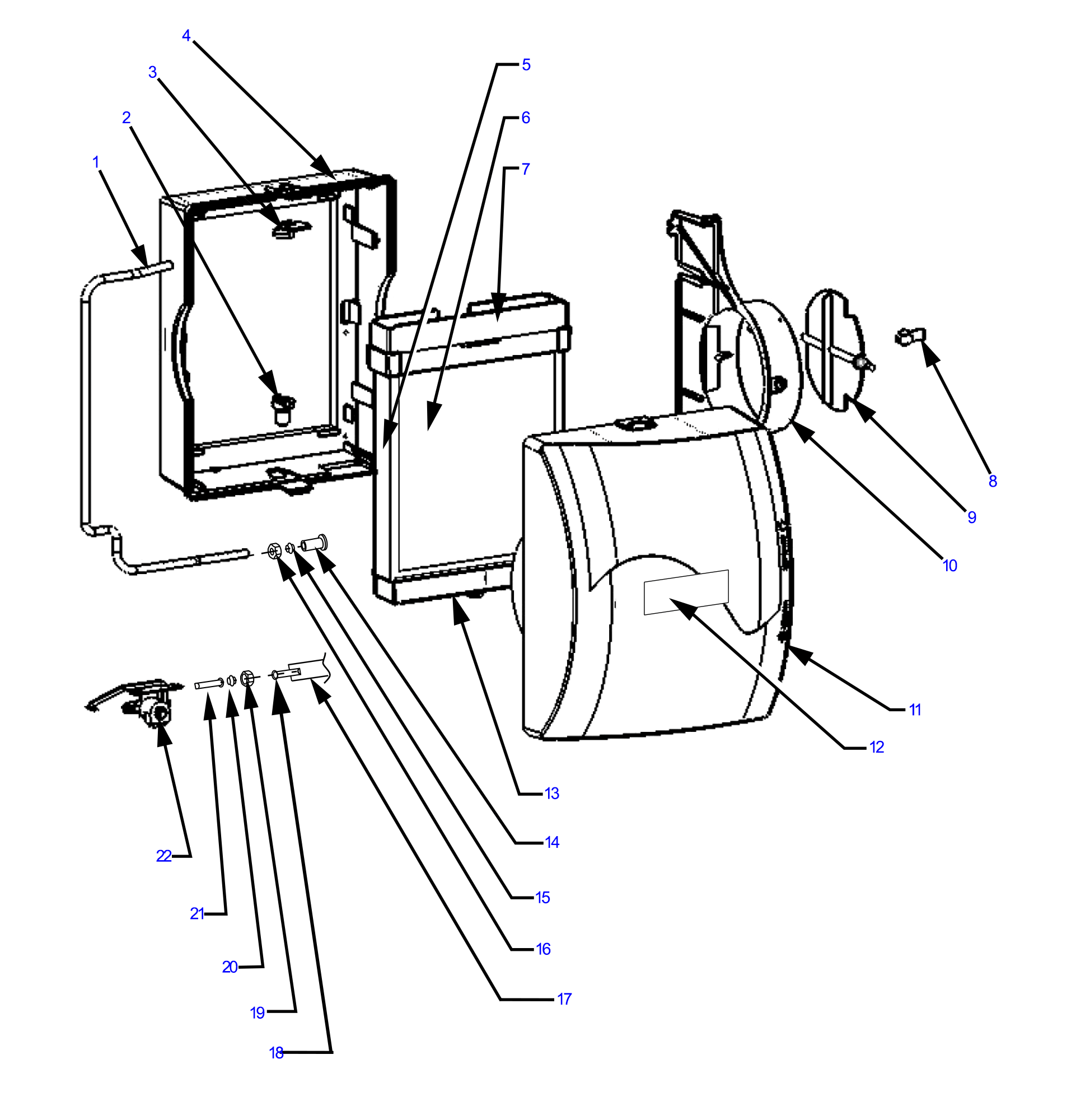

    Select a diagram to view its parts

    Parts

    Diagram

    Parts
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22

    Parts

    1. 1
      Distributor Tube
      Distributor Tube
      SKU: GA4235
      $10.20
    2. 2
      Spout
      Spout
      SKU: 90010
      $3.04
    3. 3
      Nozzle
      Nozzle
      SKU: 9009
      $3.08
    4. 4
      Chasis
      Chasis
      SKU: 9501
      $89.74
    5. 5
      Pad Rail
      Pad Rail
      SKU: 90040
      $4.69
    6. 6
      Vapor Pad
      Vapor Pad
      SKU: GA23
      $13.38
    7. 6
      1099LHS Tune UP Kit
      1099LHS Tune UP Kit
      SKU: 1099LHSMAINTKIT
      $37.35
    8. 7
      Distributor Trough
      $16.50
    9. 8
      Damper Knob
      Damper Knob
      SKU: 90011
      $3.38
    10. 9
      Damper Disk
      Damper Disk
      SKU: 9505
      $19.65
    11. 10
      Side Panel
      Side Panel
      SKU: 9502
      $92.10
    12. 11
      Cover
      Cover
      SKU: 95013
      $56.66
    13. 12
      Name Plate
      Name Plate
      SKU: 90016
      $9.41
    14. 13
      Drain Pan
      Drain Pan
      SKU: 95014
      $4.69
    15. 14
      Orange Orifice
      Orange Orifice
      SKU: GA4299
      $1.18
    16. 15
      Plastic Compression Sleeve
      Plastic Compression Sleeve
      SKU: P190
      $3.56
    17. 16
      Compression Nut
      Compression Nut
      SKU: P101
      $3.91
    18. 17
      Water Supply Tubing Kit
      $10.20
    19. 18
      Brass Insert Tube
      Brass Insert Tube
      SKU: P189
      $3.56
    20. 19
      Compression Nut
      Compression Nut
      SKU: P101
      $3.91
    21. 20
      Plastic Compression Sleeve
      Plastic Compression Sleeve
      SKU: P190
      $3.56
    22. 20
      Copper Compression Sleeve
      Copper Compression Sleeve
      SKU: P102
      $3.91
    23. 21
      Strainer Screen
      Strainer Screen
      SKU: GA4004
      $4.06
    24. 22
      Solenoid Valve 24V
      $62.18

    Parts Not In Diagram

    1. Not Shown
      Bypass Humidifier 23.1 GPD
      $295.31
