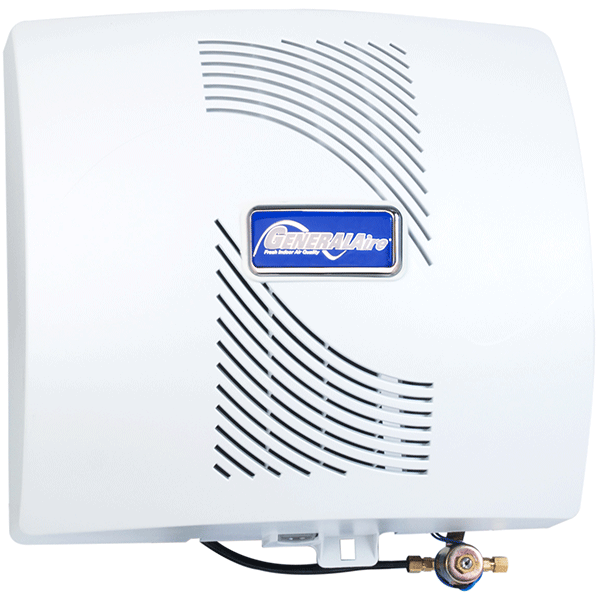

1000 Fan Powered Humidifier

Search Results for

    Select a diagram to view its parts

    Parts

    Diagram

    Parts
    1
    2
    3
    4
    5
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22

    Parts

    1. 1
      Nozzle
      Nozzle
      SKU: 9009
      $4.80
    2. 2
      Spout
      Spout
      SKU: 90010
      $4.74
    3. 3
      Yellow Orifice
      Yellow Orifice
      SKU: GA4231
      $22.09
    4. 4
      Plastic Compression Sleeve
      $5.05
    5. 5
      Compression Nut
      Compression Nut
      SKU: P101
      $6.09
    6. 6
      Distributor Tube
      Distributor Tube
      SKU: GA4235
      $15.90
    7. 7
      Brass Insert Tube
      Brass Insert Tube
      SKU: P189
      $5.55
    8. 8
      Copper Compression Sleeve
      $6.09
    9. 9
      Strainer Screen
      Strainer Screen
      SKU: GA4004
      $6.32
    10. 10
      Solenoid Valve 24V
      $112.91
    11. 11
      Pad Rail
      Pad Rail
      SKU: 90040
      $7.31
    12. 12
      Series Tune UP Kit
      Series Tune UP Kit
      SKU: 1000MAINTKIT
      $85.05
    13. 12
      Vapor Pad
      Vapor Pad
      SKU: GA900
      $19.64
    14. 13
      Drain Pan
      Drain Pan
      SKU: 90014
      $5.81
    15. 14
      Distributor Trough
      $22.04
    16. 15
      Fan Blade
      Fan Blade
      SKU: GA4247
      $39.23
    17. 16
      Motor
      Motor
      SKU: GA4237
      $163.30
    18. 17
      Name Plate
      Name Plate
      SKU: 90016
      $14.67
    19. 18
      Wiring Harness
      Wiring Harness
      SKU: GEN100011
      $19.58
    20. 19
      Relay Circuit Board
      $93.31
    21. 20
      Power Supply Cord
      $22.04
    22. 21
      Chasis
      Chasis
      SKU: 9501
      $139.92
    23. 22
      Baffle
      Baffle
      SKU: 10001
      $31.86

    Parts Not In Diagram

    1. Not Shown
      Front Cover
      Front Cover
      SKU: GEN100013
      $110.45
