5500 Steam Humidifier

Search Results for

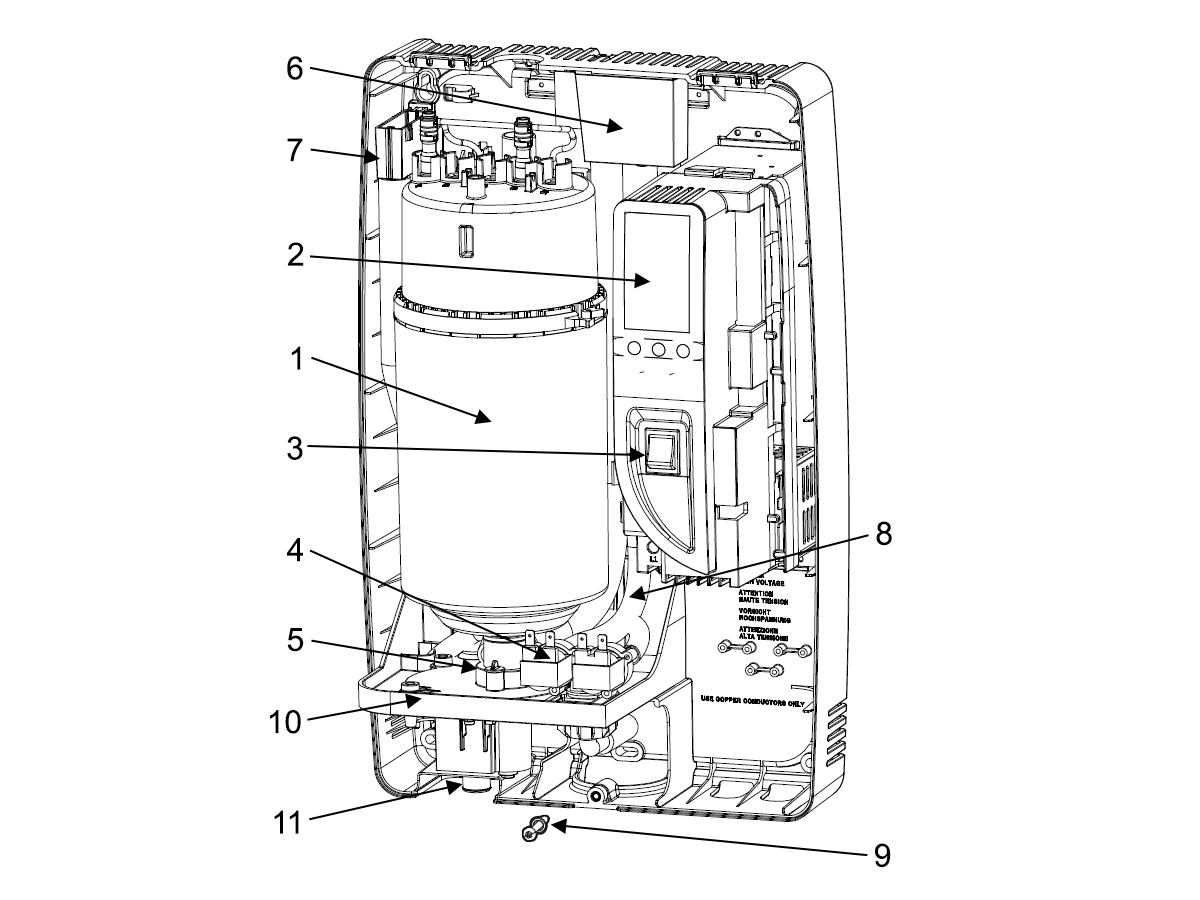

    Select a diagram to view its parts

    Parts
    Parts
    Shop Accessories
    Steam Humidifier Installation Accessories
    Parts

    Diagram

    Parts
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11

    Parts

    1. 1
      Steam Cylinder
      Steam Cylinder
      SKU: 550002

      1

      Needed
      $247.44
      View Details
    2. 2
      Control Module Assembly
      Control Module Assembly
      SKU: 550003

      1

      Needed
      $828.35
      View Details
    3. 3
      Switch
      Switch
      SKU: 3518

      1

      Needed
      $14.42
      View Details
    4. 4
      Fill & Drain Tempering Valve
      Fill & Drain Tempering Valve
      SKU: 550008

      1

      Needed
      $141.30
      View Details
    5. 5
      Drain Pump Assembly
      Drain Pump Assembly
      SKU: 257

      1

      Needed
      $431.90
      View Details
    6. 6
      Fill Tank & Plug
      Fill Tank & Plug
      SKU: 252

      1

      Needed
      $130.90
      View Details
    7. 7
      Drain Pump Tank
      Drain Pump Tank
      SKU: 258

      1

      Needed
      $208.28
      View Details
    8. 8
      Duct Tubing Kit
      Duct Tubing Kit
      SKU: 255

      1

      Needed
      $249.94
      View Details
    9. 9
      Cover Screws Kit
      Cover Screws Kit
      SKU: 3525

      1

      Needed
      $11.01
      View Details
    10. 10
      Bottom Tank
      Bottom Tank
      SKU: GEN256

      1

      Needed
      $193.82
      View Details
    11. 11
      Drain Fitting
      Drain Fitting
      SKU: 550006

      1

      Needed
      $33.13
      View Details

    Parts Not In Diagram

    1. Not Shown
      Steam Hose 22MM
      Steam Hose 22MM
      SKU: GEN202
      Sold per foot
      $18.66
      View Details
    2. Not Shown
      Steam Hose 30mm
      Steam Hose 30mm
      SKU: 5006
      Sold per foot
      $28.87
      View Details
    Installation Accessories
    Shop Accessories
    5500 Steam Humidifier

    Documentation

    GeneralAire 5500 Installation Manual
    GeneralAire 5500 Cylinder Replacement Instructions
    GeneralAire 5500 Spec Sheet
    GeneralAire 5500 Brochure

    Repair Help

    View available resources

    Information

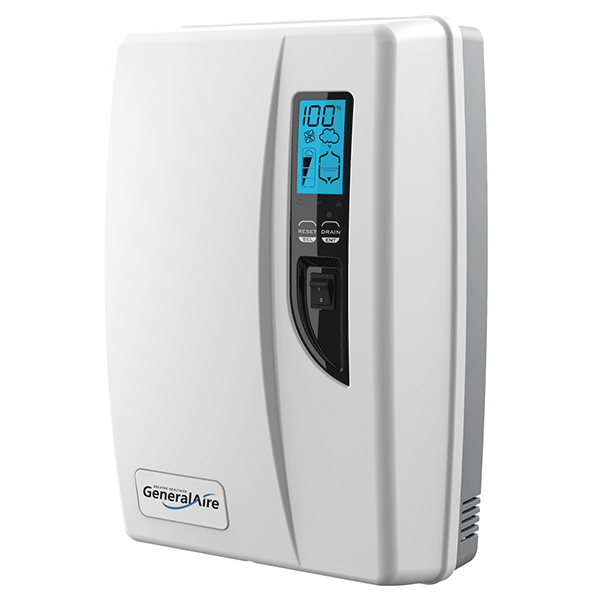

    The 5500 Steam Humidifier is an electrode humidifier. Unlike heating elements, electrode steam humidifiers produce steam for humidification by passing electric current through the water between metal electrodes inside the plastic steam generator cylinder. Steam output is directly proportional to the conductivity of the water, the power supply (115V or 230V), and the amount of electrode immersed in the water.
