DS35 Steam Humidifier

Search Results for

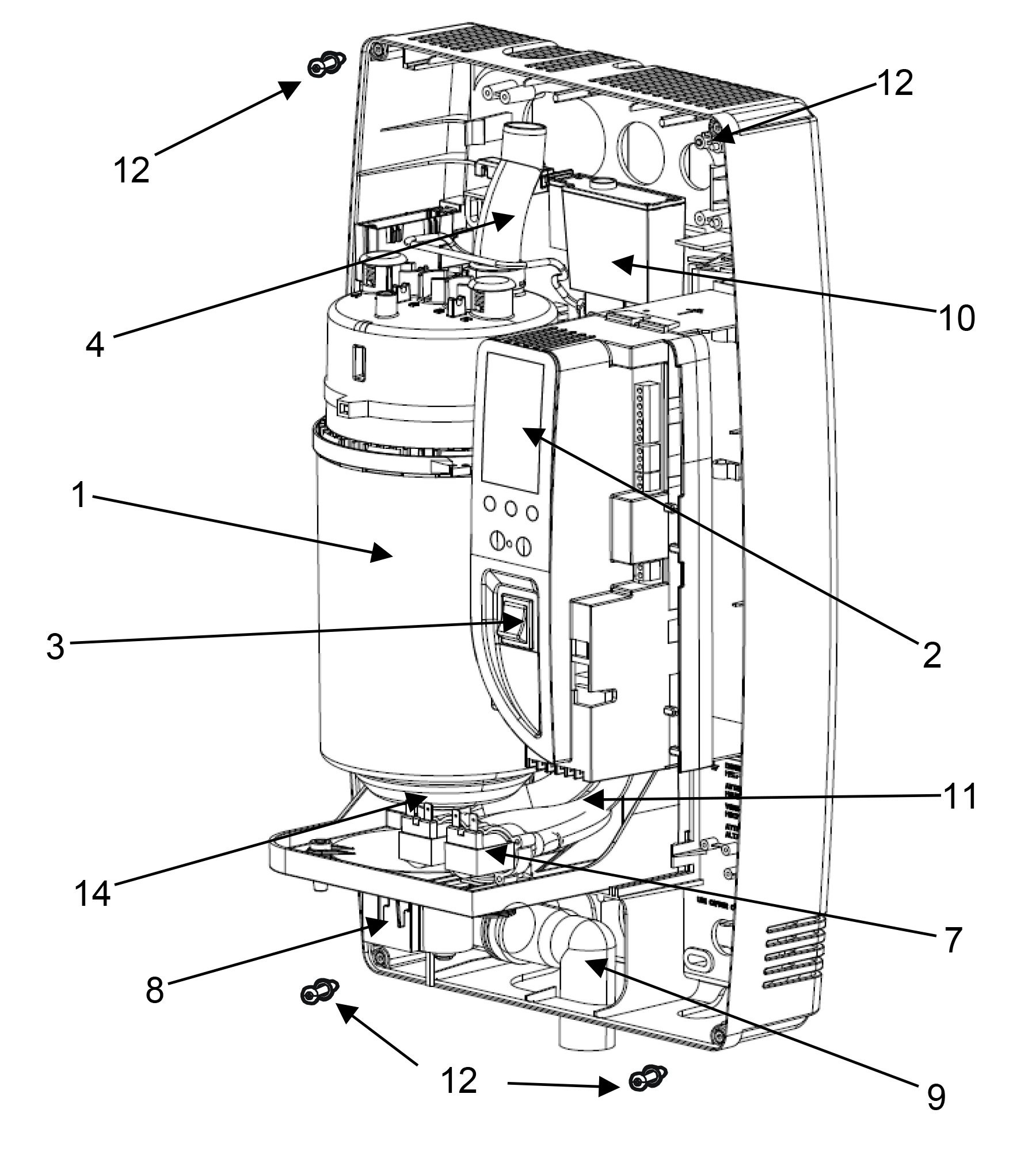

    Select a diagram to view its parts

    Parts

    Diagram

    Parts
    1
    2
    3
    4
    7
    8
    9
    10
    11
    12
    12
    12

    Parts

    1. 1
      Steam Cylinder
      Steam Cylinder
      SKU: 3514
      $139.13
    2. 1
      Steam Cylinder
      Steam Cylinder
      SKU: 3515
      $139.13
    3. 2
      Control Module
      Control Module
      SKU: 151
      $625.55
    4. 2
      Control Module
      Control Module
      SKU: 351
      $625.55
    5. 3
      Switch
      Switch
      SKU: 3518
      $11.09
    6. 4
      Room Blower Assembly
      $250.59
    7. 7
      Fill Valve Assembly
      $91.58
    8. 8
      Drain Valve Assembly
      $121.03
    9. 9
      Water Fill Connector
      $39.23
    10. 10
      Fill Cup
      Fill Cup
      SKU: 3522
      $67.37
    11. 11
      Internal Hoses Kit
    12. 12
      Cover Screws Kit
      Cover Screws Kit
      SKU: 3525
      $8.48

    Parts Not In Diagram

    1. Not Shown
      Steam Nozzle
      Steam Nozzle
      SKU: GEN201
      $117.10
    2. Not Shown
      17.5 Inch Steam Manifold
      $145.27
    3. Not Shown
      12 Inch Steam Manifold
      $129.56
    4. Not Shown
      Steam Hose 22MM
      Steam Hose 22MM
      SKU: GEN202
      $14.36
    5. Not Shown
      Condensate Hose
      $2.44
    6. Not Shown
      Blower Filter Kit
      $9.13
    7. Not Shown
      90 Degree Drain Adapter
      $13.06
    8. Not Shown
      Internal Cables Kit
      $110.56
    9. Not Shown
      Duct Mount Kit
      Duct Mount Kit
      SKU: DMNKIT
      $402.23
    10. Not Shown
      Modulating Humidistat 24V
      $290.54
    11. Not Shown
      Remote Blower Kit
      $7,499.99
    12. Not Shown
      Humidistat
      Humidistat
      SKU: HC201
      $211.78
    13. Not Shown
      Elite Steam Humidifier
